Custom Hard Jaws for a Chuck
When standard hard jaws can’t hold your part, KEM can design and build a solution for you.
Custom Hard Jaws for a Vice
When your part does not fit well in standard vise jaws KEM can design and built a solution for you.
Custom Locator for Drilling Cap
When part orientation is critical to meet GD&T requirements, KEM can design and build solution for you. This image shows the custom locator designed to fit the hard-to-hold cap shape. A locator was also designed that attached to the Seoam Pull-back Chuck so the cap could be held in the machining center to have holes drilled into it.

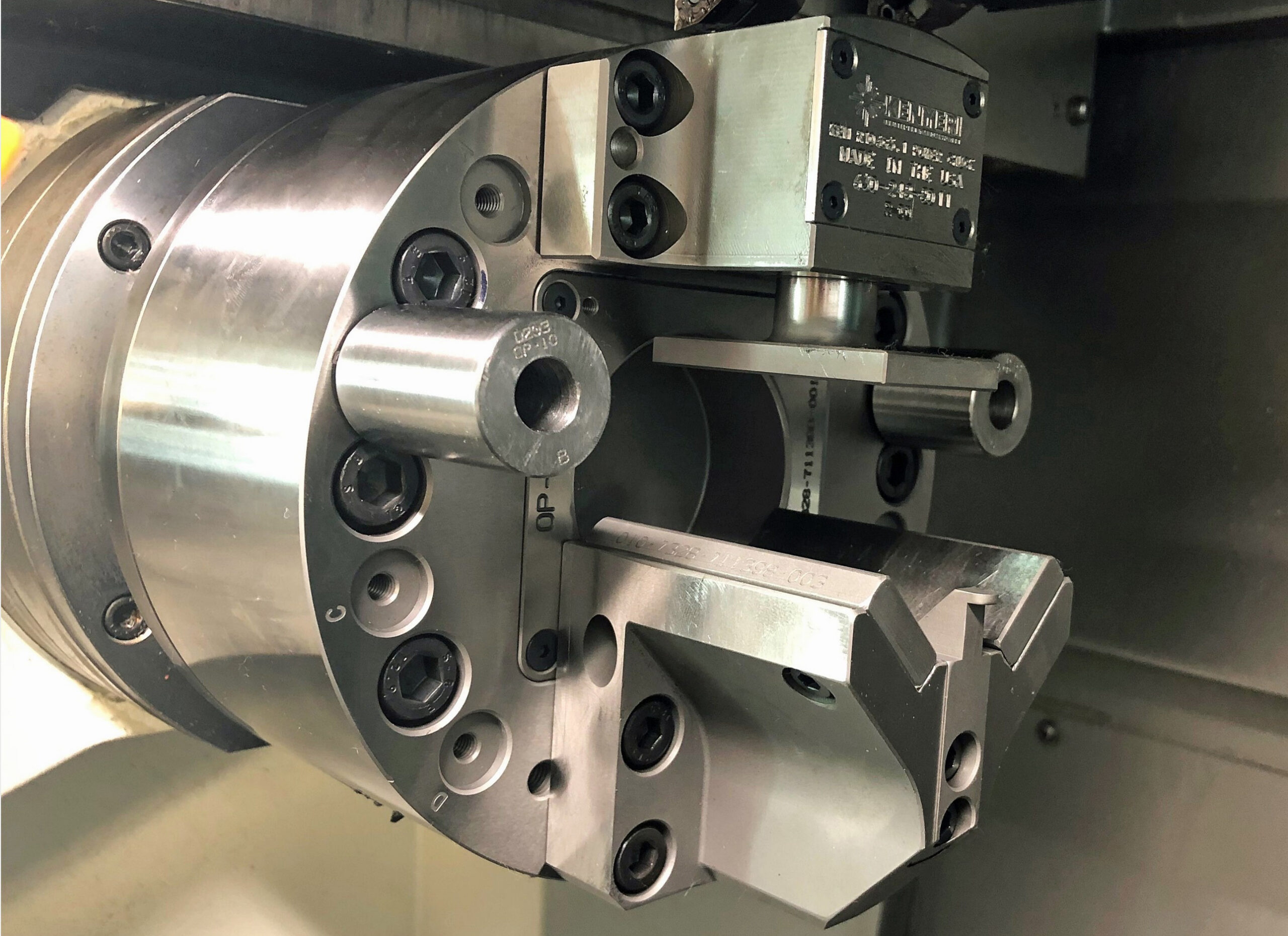

GCF Chuck
Our CGF chuck was developed to offer better grip force at speed, so you don’t have to grip the part as hard at zero RPM. This will reduce part deformation on delicate, hard to hold parts. The CGF chuck also offers near perfect repeatability, better than .005mm and TIR is better than .005mm. This allows the chuck to be used in OP10 and OP20 applications.
CYLINDER-SIDE PART STOP
When long parts need to be positioned inside the machine spindle, contact KEM for a solution
